Hybri-Pond 1 Pond and Stream Kit
Hybri-Pond 1 Pond and Stream Kit
The Hybri-Pond 1 Pond Waterfall and Stream Kit provides pumping, filtration, skimming and overflow components for a pond with a waterfall. Includes the T75F Filtered Pump Vault. Optional Auto-Fill and Pump Shut-Off Devices are available.
Stream / Waterfall Width: 2.5 ft.
Stream / Waterfall Length: 34 ft.
Maximum Waterfall Flow: 4300 Gallons Per Hour
Suggested Pond Size: 6000 Gallons
Design Notes:
- This system is designed for a waterfall and a stream which flows into a pond.
- Two pumps are included, one for waterfall & stream operation and the other for pond circulation.
- The system is designed to contain the waterfall & stream water underground when the waterfall & stream pump is turned off.
- The included skimmer provides a fixed water level.
- A valve to adjust the water flow from the pump is included.
- Pond liner is not included and due to weight is usually more cost effective when purchased locally. For pricing on pone liner please contact us
- If an external pump or a different submersible pump is to be used instead of the included submersible pump, please contact us for pricing on a custom system.

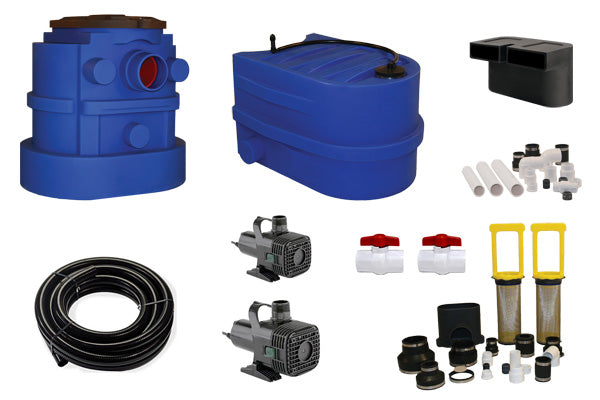

Oasis 1 Kit Includes:
1 - Filtrific® T75F Filtered Pump Vault
1 - Filtrific® T40SP Expansion Reservoir
1 - Filtrific® S64 Small Fixed Skimmer
1 - Filtrific® Waterfall Starter
1 - Filtrific® Overflow Kit
1 - 1-1/2" Ball Valve
1 - 6" Valve pit
1 - Filtrific® D21-HPK Hybri-Pond Discharge Package
1 - Little Giant 5,000 GPH Wet Rotor Pump Model F50-5000
1 - Little Giant 1,200 GPH Wet Rotor Pump Model F10-1200
1 - 2" PVC Flex Pipe (2" X 50')
Misc. Pipe, Fittings & Cement
*Rubber Liner Not Included. For pricing on rubber liner please contact us.
System Sizing Help
Please contact us for any assistance on correctly sizing the water feature
Need Some Design Inspiration?
Visit the Photo Gallery to view an assortment of different installations varying in size and type
Share
Add Accessories to Your Water Feature Kit
Pump shut off switches, autofill kits, skimmer hoods and grates, extra water storage capacity tanks
Customized Kits Call 800-959-8353
If you don't see a kit that fits your situation, call us and we can generate a custom kit for just what you need.
Filtered Pump Vault
Whether you are building, a backyard waterfall and
stream, or a pond, concrete fountain, a water wall, or a rock column water feature, make sure the reservoir or the pump won't clog up and fail like other pondless waterfall kits, pond kits, or rock column kits or pump vaults on the market. Other pondless waterfall systems use a pit lined with rubber liner, filled with rocks and maybe with plastic crates to store and filter the water. As you would expect, they clog up and fail over time. Other pump vault systems offer tanks with filter chambers outside of them. This means it takes two tanks to do what a Filtrific Filter does with one. Also, many times the tank or pump chamber that is supposed to hold the water when the pump is turned off, is too small to contain all the water in motion. Unfortunately, then when the water is turned off, the water drains out the bottom of the water feature. When the pump is turned back on all the water that was lost has to be added back into the system to get it running again.
Water-In-Motion Storage
Be very careful when you are looking to buy a pondless
waterfall or stream kit or any other water feature that you evaluate the water in motion storage the kit offers. Most pondless waterfall and stream kits or pump chamber systems don't include enough water storage to contain the water in motion when the pump is turned off. Unfortunately then, when the water is turned off, it all drains out the bottom of the water feature. When the pump is turned back on all the water that was lost has to be added back into the system to get it running again.
How accessible is the water storage? Other pondless waterfall systems use a pit lined with rubber liner, filled with rocks and maybe with plastic crates to store the water when the pump is turned off. These pondless waterfall systems eventually clog up with debris and fail over time. The way these rock pit/crate systems are designed they are very difficult to pump the water out when the water gets dirty and contaminated. With a Filtrific Filter tanks system you always have the option to pump out all the water in your water feature and put new water in if you choose.
Remote Placement
Berkey Supply water feature kits utilize Filtrific Filter tanks which can be placed remotely in the landscape or in mechanical rooms. A natural looking water feature shouldn't have a plastic skimmer on the edge of it and a concrete water feature shouldn't have a pump sitting on the bottom of it. Filtrific skimmers are made to be hidden it the water feature and attached to piping that feeds the water to the filter tank.
Professional Equipment
Berkey Supply, Inc.
Call 800-959-8353 with product questions and our
knowledgeable staff with years of experience will be able to assist you.
