Mechanical Accessability

Houses Auto-Fill, Pump Shut-Off and Overflow

Fountain Auto-Fill

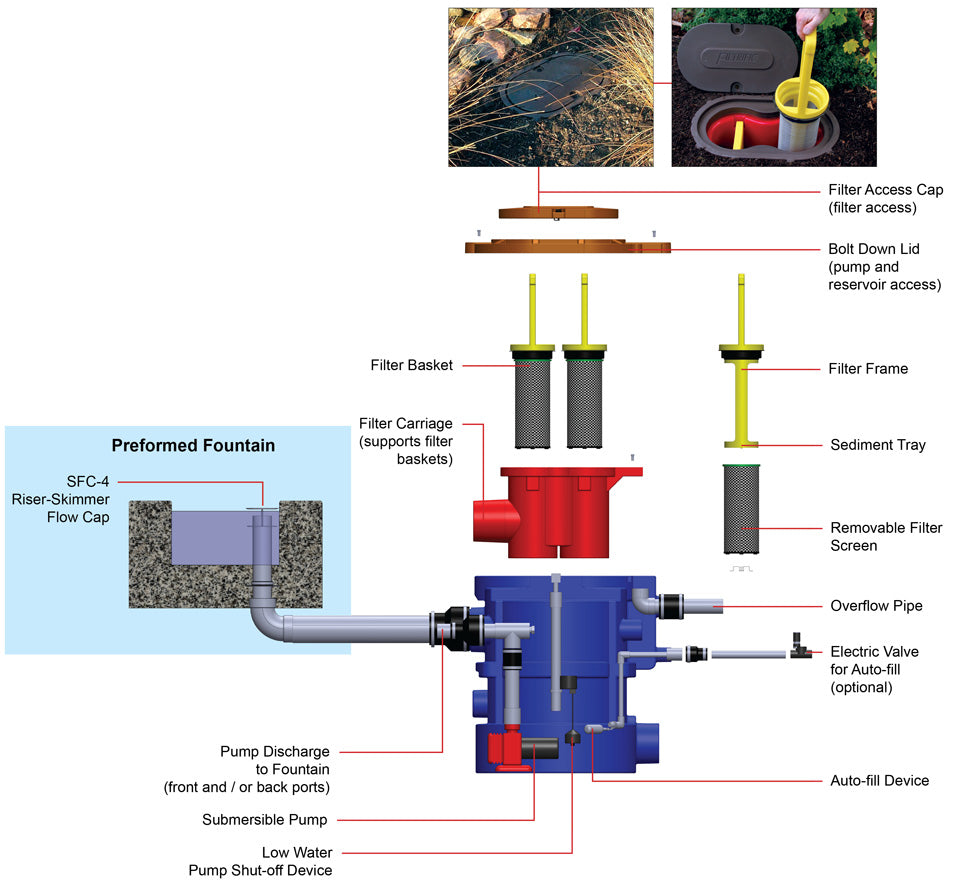

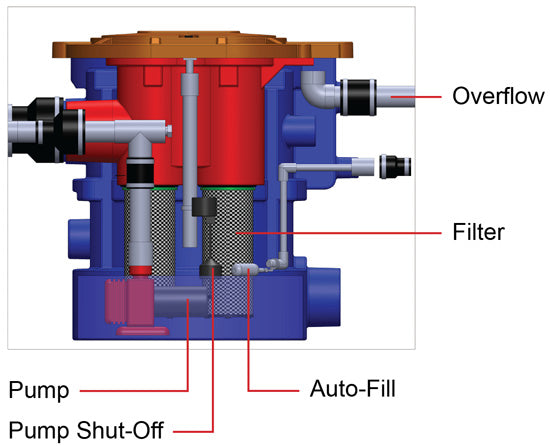

Housing for the Fountain Auto-Fill, Pump Shut-Off and Overflow Devices

Designed to simplify a fountain installation while providing full functionality, the Filtered Pump Vault can house a wide variety of system accessories. Electric and mechanical auto-fill devices, pump shut-off devices and a built-in overflow are just a few of the system accessories which are easily housed inside the vault. For a full list of the available in-vault accessories please see www.filtrific.com

Filter, Pump Chamber & Reservoir All-In-One

The Filtered Pump Vault houses the system filtration, pump, pumping components and reservoir in one compact unit.

banner

Professionals Prefer Filtrific ®

"The Best Designed and Most Dependable System on yhe Market"

"From the perspective of a company that has projects in several continents I cannot afford a call-back. Over the years and true effort with many other styles and brands of in-ground filters I am convinced the "Filtrific" filtering systems in the best design and most dependable system on the market for water features large and small. The filters provide for numerous installation configurations and are built to such high standards that I have no second thoughts of using them on my projects in any climate where dependable filtration is required.

David Duensing Aquatic Construction Services Ponte Vedra Beach, Florida www.aquaticcs.com

Accessing the Pump Chamber

From time to time, the pump chamber may need to be accessed. With the Filtered Pump Vault, this process is very simple and straight forward.

banner

Unscrew the bolts on the lower lid

banner

Unscrew the bolt on the Filter Carriage

banner

Remove the Filter Carriage and filters

banner

Access the pump and any installed pumping components

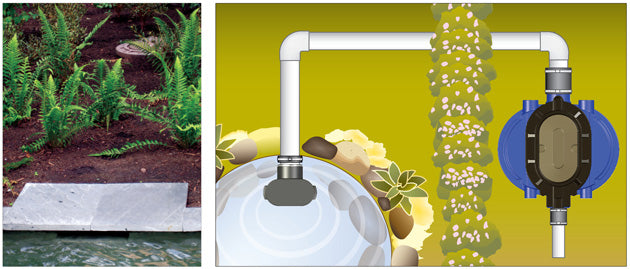

Remote Placement


The Filtered Pump Vault is designed to be placed next to or away from the fountain where it is hidden and out of sight, as to not spoil the visual effects of the waterscape.

banner
banner

Easy Pipe Connection

The Filtered Pump Vault and Expansion Reservoir units both feature Filtrific’s Built-In Ports which allow for a very simple pipe connection.

Additional Information

Visit the Official Filtrific Website to view additional information on each Filtered Pump Vault and available accessories.

Berkey Supply, Inc.

Call 800-959-8353 with product questions and our
knowledgeable staff with years of experience will be able to assist you.
